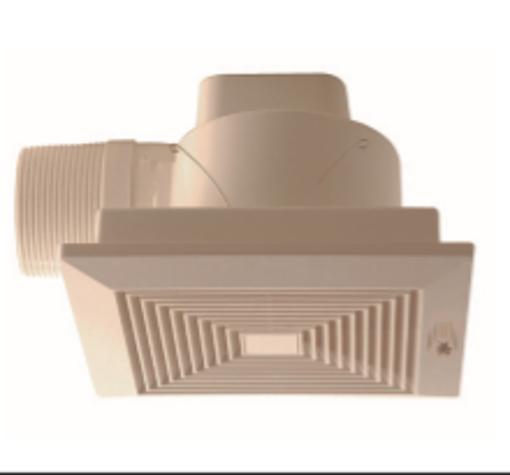

Data Table for Ducted Ventilation

SKU: 120 mm
Call for pricing
Centrifugal Fan DiameterVoltsHzWattsRated Static PressureRated AirflowSound Level @ 1 MetreCeiling Cut OutDuct Size
120 mm220-240503450 Pa40 l/s42 dBA230 mm x 230 mm100 mm


Features
• Low Profile 90º takeoff for limited access/low roof cavity use
• Non return damper prevents backflow of air
• Plug in 1.3 metre 240 volt power cord for ease of fitment
• Low noise (40 Decibels @ 1 metre) gives unobtrusive everyday use
• Face plate removes for easy cleaning
• Low profile/flush fit to ceiling reduces unsightly shadows
• Attractive styling fits with most decors
• Use up to 6 metres of 100 mm duct with minimal pressure drop


Uses
• For use in Bathrooms, toilets, laundries etc and wherever there is a need to remove air quietly and quickly
• Especially useful in apartment/ high rise applications where numbers of ventilators can be connected to common duct without any backflow problems
• Can also be used for short heat shifter applications
