| Product Code | Standard Kit Sizes | Cover Grille Standard Colour |
| FDG-D2412 | 600 x 300 mm | Silver |
| FDG-D1818 | 450 x 450 mm | Silver |
| FDG-D2424 | 600 x 600 mm | Silver |
Notes:
(i) Kits supplied complete with pair of cover grilles, Fire Rated Mastic, Fixings and installation instructions.
(ii) Standard sizes only apply – up to two kits may be installed per door leaf if required
(iii) Kits suits both 35 and 45 mm thick fire doors
Intumescent Fire Dampers For use in Fire Doors
2 hour Fire Ratings (FRL -/120/30)
New design suits 35mm thick fire doors
General

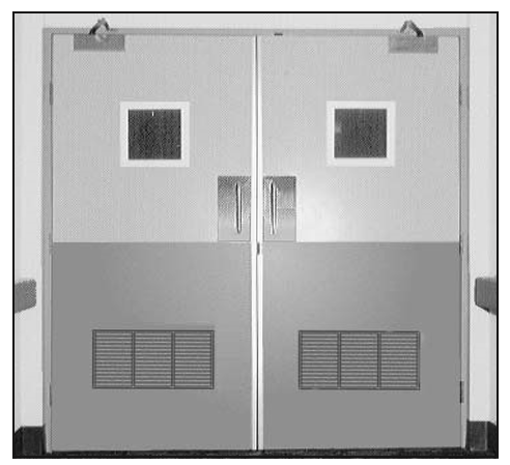

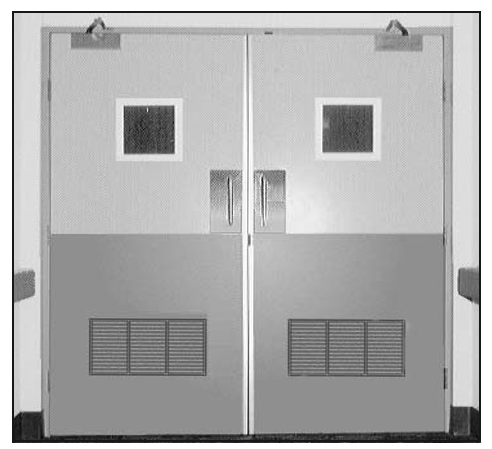

Wombat (Door Mounted) series Intumescent Fire Dampers are designed for use in fire door assemblies. The damper units are slimline and are available with an overall thickness of only 35 or 44mm allowing them to be incorporated within conventional 35 and 45 mm nominal fire door leaves. In everyday service the damper allows a through flow of air for ventilation or equalisation of pressure on either side of the doorway. The units are robust, virtually maintenance free, will not be damaged by vibration or slamming and have no loose parts to cause rattles when the door is opened or closed.
The fire damper kit comes complete with a pair of face fixed, decorative powder coated steel cover grilles that give a neat appearance whilst also providing a degree of privacy.
Wombat intumescent fire dampers have been fire tested to AS1530.4 and are approved for most proprietary fire door assemblies that comply with AS/NZS1905.1.
Key Features
• Innovative slimline design
• No moving parts
• Up to 2 hours fire rating
• Fits into both Mini & Maxi fire doors
• Easily installed in new or retrofitted into existing doors
• All in one kit - complete with fixing screws, cover grilles and fire rated mastic
